CellOrganizer for Docker

Installing CellOrganizer for Docker


CellOrganizer for Docker contains binaries for the two main functions which this document will cover

  • img2slml, the top-level function to train generative models of cell, and
  • slml2img, the top-level function to generate simulated instances from a trained generative model.
  • slml2info, the top-level function to generate a report from information extracted from a single generative model.
  • slml2report, the top-level function to generate a report from comparing generative models.


The following instructions describe

  • How to install Docker, the virtualization engine that will run the container
  • How to install Kitematic, a UI for Docker
  • How to download the latest cellorganizer-docker image from Docker Hub, i.e. the docker images repository
  • How to start a container from the Docker image
  • How to connect to the container
  • How to run some of the demos included in the container

Source Code

For convenience, the Docker image can be found in Docker Hub along with links to the Dockerfile.

The instructions below will show you how to download and use this image.

Installing Docker

Before downloading the image and spinning a cotainer, you need to install Docker. Installing Docker is beyond the scope of this document. To learn about Docker Community Edition (CE), click here.

  • To install Docker-for-Mac, click here.
  • To install Docker-for-Windows, click here.

Download the most recent image using Docker command line

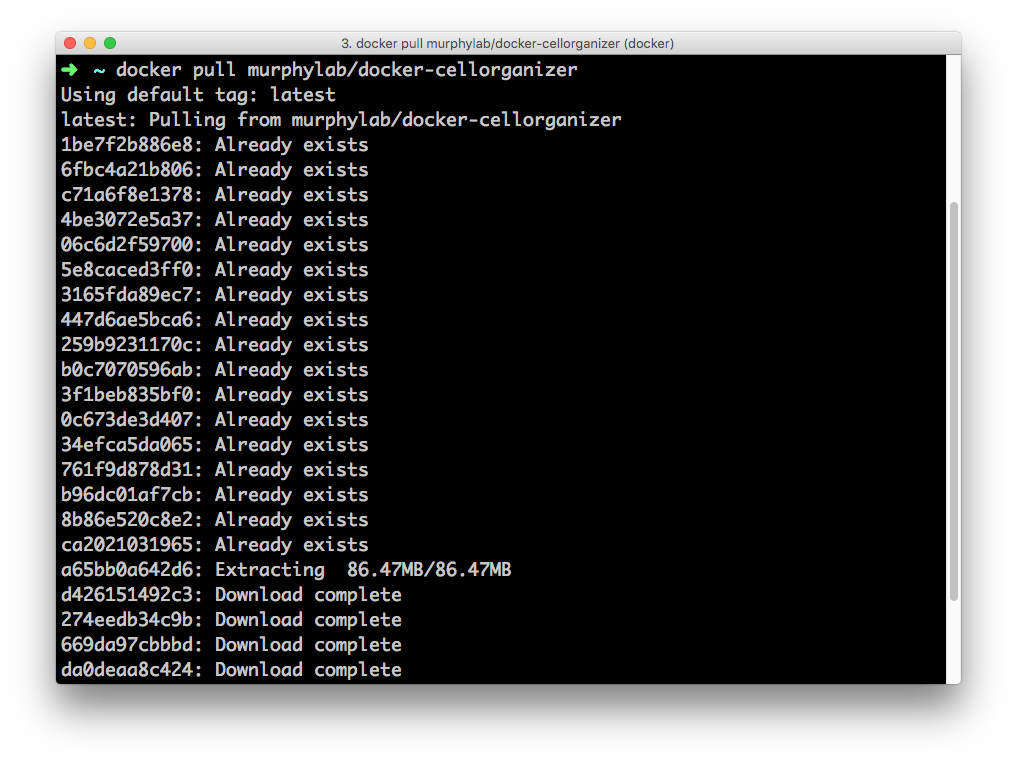

Open terminal and enter the command

docker pull murphylab/cellorganizer:latest

Running this command will initiate download and pull the most recent image of cellorganizer-docker from Docker Hub down to your computer.


Once the download is complete, you can confirm the image was downloaded by entering the command:

docker images

You should see a record of a docker image identified by its repository murphylabs/cellorganizer and the tag latest.

Installing Kitematic

The easiest way to download an image and run a container is to use Kitematic. Kitematic is a tool for downloading images and running containers.

  • To install Kitematic, click here.


Kitematic is not necessary but it is reccomended to streamline installation and deployment

Download the most recent image using Kitematic

Start Kitematic. It should open a window similar to the screenshot below


Demos included in the distribution

There are several demos included within the CellOrganizer software bundle. These demos are intended to illustrate CellOrganizer’s functionality, and should be used to familiarize the user with the input/output format of various top-level functions such as img2slml and slml2img.

Running CellOrganizer for Docker

Access cellorganizer-docker container interactively

Make sure Docker is running on your computer. Open Terminal and enter the command:

docker run -it murphylab/cellorganizer:latest

The docker run command creates a container instance from our cellorganizer-docker image (murphylab/cellorganizer:latest).

The -it option enables us to interactively access the container. The Terminal window now reflects the view within the cellorganizer directory inside our container instance. We have access to all files and directories in the container through Terminal.

Run a demo that invokes img2slml

An example of a demo that trains a generative model from a series of .tif image files is demo2D01. To run this demo, change your current directory to /home/cellorganizer/demos/2D/demo2D01 by entering:

cd /home/cellorganizer/demos/2D/demo2D01

You should find the shell script demo2D01.sh. To run the demo, Enter the command:


This demo will save a folder param containing .mat files as well as a .mat file lamp2.mat to the same directory (/home/cellorganizer/demos/2D/demo2D01). These .mat files contain information characterizing the trained generative model.

Run a demo that invokes slml2img

An example of a demo that produces simulated images from a trained generative model is demo2D02. To run this demo, change your current directory to /home/cellorganizer/demos/2D/demo2D02 by entering:

cd /home/cellorganizer/demos/2D/demo2D02

You should find the shell script demo2D02.sh. To run the demo, Enter the command:


This demo will save a folder img containing these simulated images to the same directory.

Exit the container

To leave the container, enter:


You will return to the local directory in which you previously ran:

docker run -it murphylab/cellorganizer:latest

Export generated data out of the container

To export generated data out of the container, we need to know:

  • the container ID
  • the source filepath (i.e. the filepath, within the container filesystem, of the data to be exported)
  • the destination filepath (i.e. the filepath, within our local filesystem, to which we want to export the data)

Then enter the command:

docker cp <container_id> <source_filepath>:<destination_filepath>

Just after we have exited a container, We can find its ID by entering:

docker ps -a

and looking at the row of information corresponding to the most recently exited container.
